Intrafix Primeline Standard IV Set

LOGO BBraun

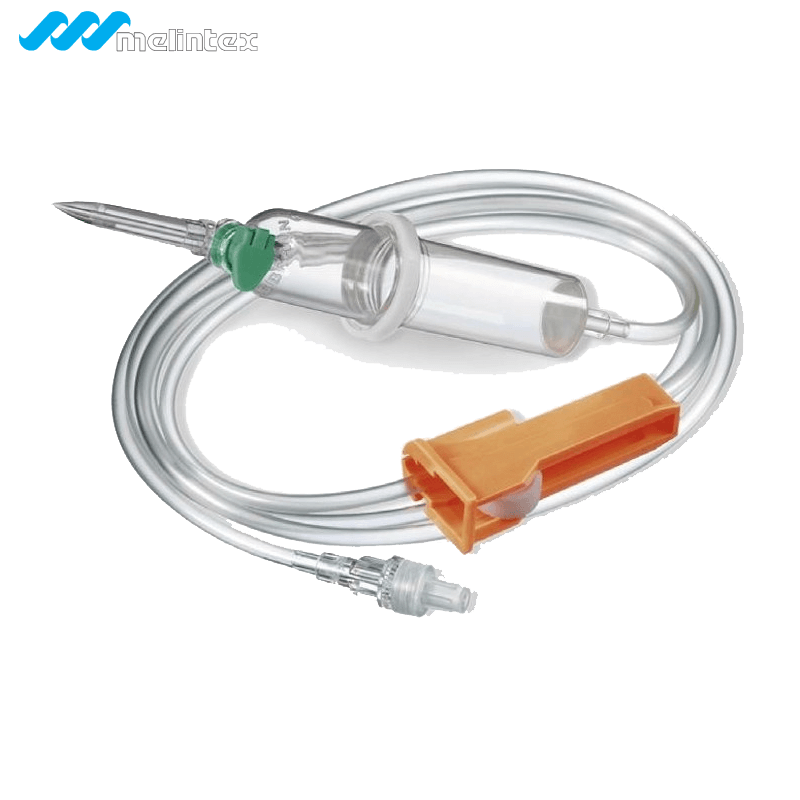

B. Braun Intrafix® Primeline
Standard IV Set – For administering all kinds of infusions

Universal IV administration sets with air vent for gravity infusions and pressure infusions with non-dedicated infusion pumps
(pressure resistant up to 2 bar)

Models Available
Pressure with 1.8m tubing
Gravity with 2m tubing, 18G x 1.5″

Basic Product Features
  • Ergonomically designed 3-part drip chamber
  • Universal, vented piercing spike. Spiking solution container with ease and preventing contamination
  • Bacteria-tight proven air vent, closable with handy snap cap
  • Fully transparent upper part allows quick drop rate check
  • Unique push ring for comfortable and secure gripping. Ideal for attachment of Infusomat® pump drip sensor
  • Extended, detached drip element provides even drop formation; 20 drops = 1ml ± 0.1 ml (aqua dist.)
  • Elastic pump chamber enables one-click fluid level setting
  • Offers a high fluid level as guard against air entrainment
  • Large 15 µm filter, provides high flow rate and protects against larger particles
  • PVC free material
  • Advanced precise roller clamp
  • Good to control flow rate, comfortable to hold. Spike dock for secure spike discard. Housing colour “orange”
  • Screw tight Luer Lock fitting
  • To prevent accidental disconnection
  • Soft, clear PVC tubing
  • With standard lumen 3 x 4.1 mm, standard length 180 cm, DEHP free plasticizer with superior, well documented safety properties
  • Options of standard add-on-devices, examples
  • Needle based, air-free Eurofix® injection site with handy safe grip plate
  • Safe, needle-free injection valve SafeFlow
  • Discofix® stopcocks for needle free injection, aspiration and parallel infusion
  • PrimeStop cap for automatic priming
  • Infuvalve® back check valve preventing backflow of solutions and blood
  • Neutrapur® tubing material PVC free (pressure resistant, but not pump-compatible!) – free of halogene, e.g. chlorine, free of plasticizer
  • Various tubing lengths for better patient mobility and others
All design features in accordance with International Standard ISO 8534-4/8
(Infusion sets for single use, gravity feed / Infusion equipment for Pressure Infusion)
